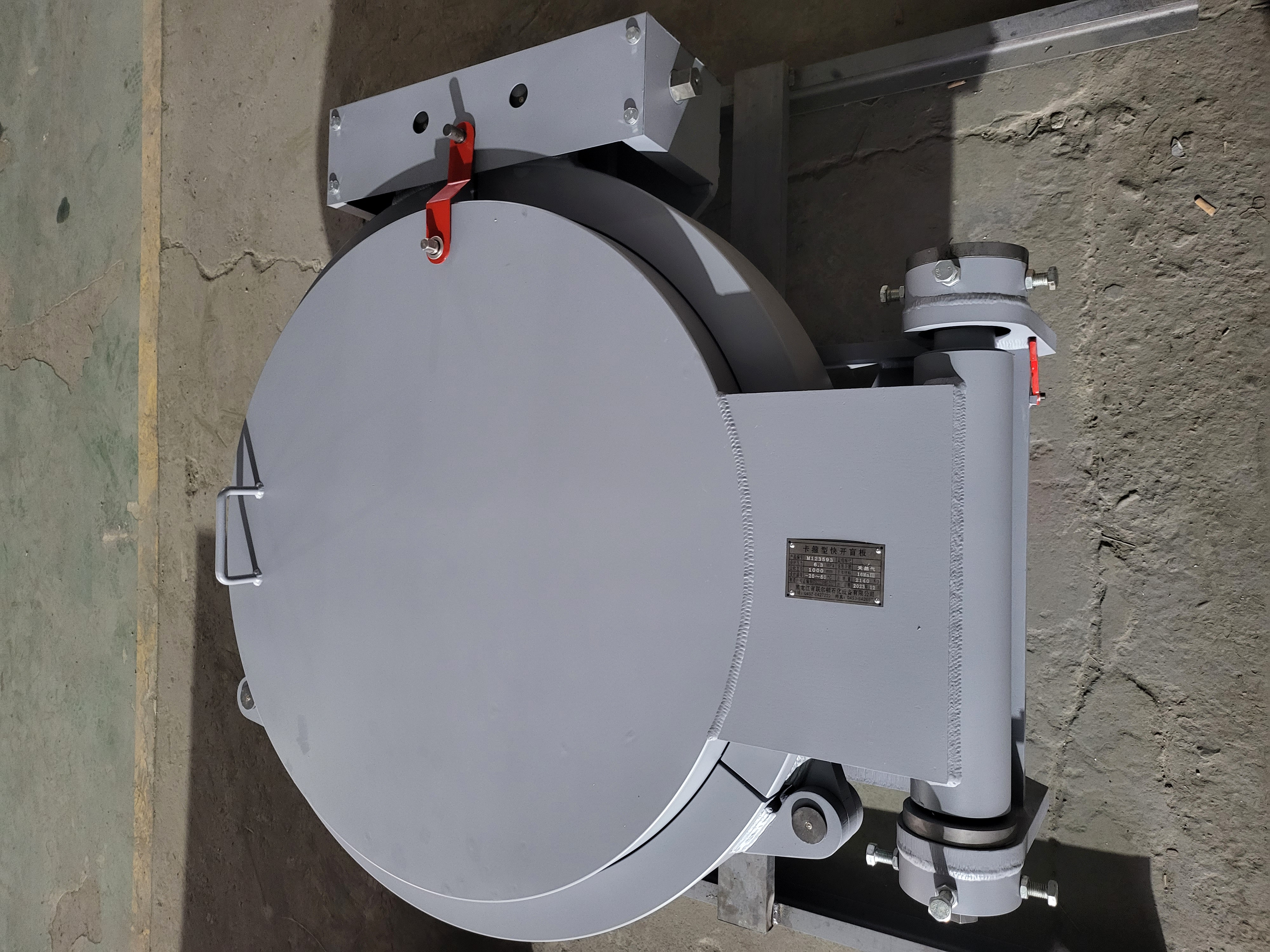

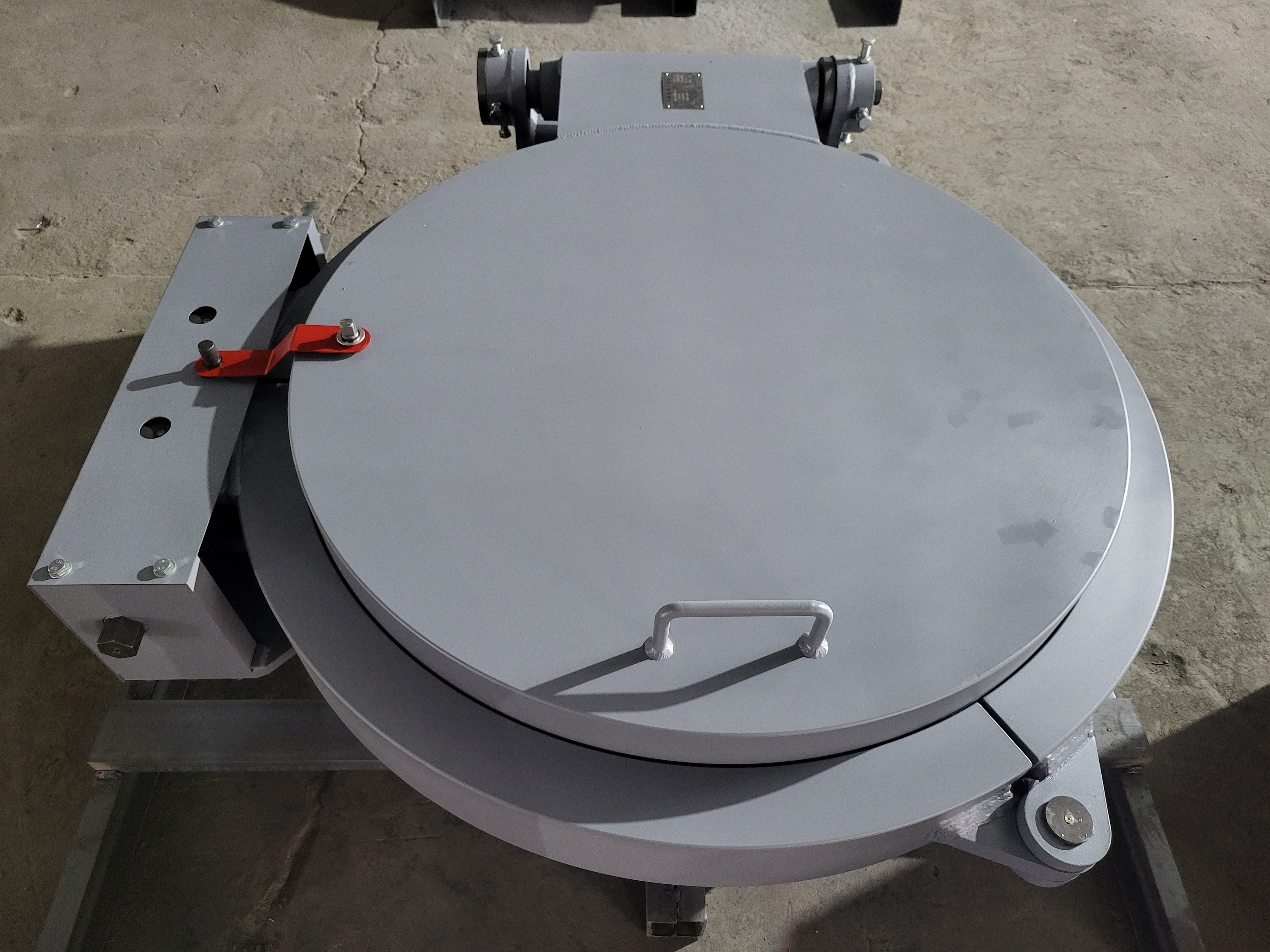

Standard Clamp Clip Type Quick Opening End Closures For Filter Tank
Brand Lianerdun
Product origin Mudanjiang
Delivery time 30-60days
Supply capacity 100Pcs/Month
Heilongjiang Lianerdun Petrochemical Equipment Co., Ltd. is located in Mudanjiang City, Heilongjiang Province. Since its establishment, the company has always adhered to the business philosophy of "quality-oriented, user-oriented" and strived to become a benchmark enterprise in the industry. The company has a strong technical force, complete licenses and a modern standard factory. The factory covers an area of 13,000 square meters, with a total number of more than 130 people and 25 technical personnel. The production and manufacturing equipment and testing equipment are complete, and the quality management system is perfect. The technical research and development team is highly professional, and the main technical indicators and performance of the products have reached the advanced level in China, and are in a leading position in the industry.
Download
Standard Clamp Clip Type Quick Opening End Closures For Filter Tank

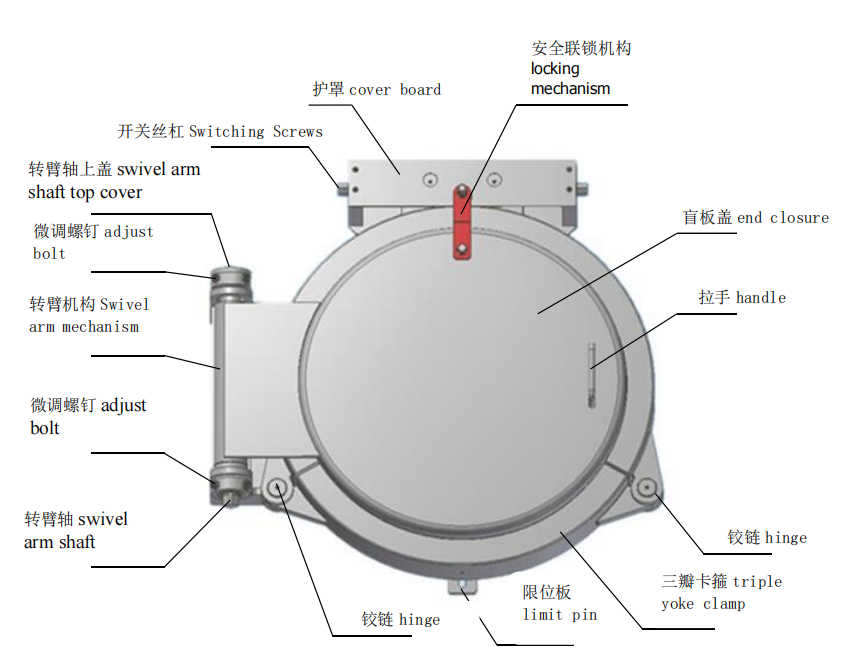

Standard Clamp Clip Type Quick Opening End Closures For Filter Tank Product Features
1.Have the function of secure self-locking (quick opening closure self-locking,shock proof, anti-looseness. secondary relief ). Its not only prevent blind plate loose during the locking but also avoid the dangerous happen when open the blind plate under the pressure.
2.Taking coaxial double structure, Between the sealing ring and sealing surface without relative rotation. the sealing ring is not easy to damage. the sealing surface is not easy wear by impurities.
3.Triple clamp can realize action at the same time and uniform strength . Reduced the open screw transmission length, make the switch more flexible and reliable.
4.Above 90% occlusal contact areas , its suitable for high pressure and large diameter natural gas pipeline. the pressure parts take 20# or 16Mn forged steel and main parts no weld assembly.
Standard Clamp Clip Type Quick Opening End Closures For Filter Tank Application Range
Clamp type quick opening closure is widely used in natural gas pipeline, chemical industry, medicine, metallurgy and other fields, such as receiving and sending ball cylinder, tank, pressurized kettle, filtration separator, heat exchanger and other containers and equipments that need to be opened and closed from time to time.
Standard Clamp Clip Type Quick Opening End Closures For Filter Tank Product Information
Product Information | |
QOC Nominal Size | From 4″ to 78″ |
QOC Design Code | ASME VIII Div. 1 |
QOC Design Pressure Rating | Up to 100MPa |
QOC Design Temperature (min/max) | -46°C / +350°C |
QOC Orientation | Horizontal/Vertical |
Gasket Seal | O-Ring/Lip seal |
Design Conditions | |
Design Code ASME VIII Div. 1 | Yes |
Code stamped | Yes |
Vassel Wall Thickness | Acc. to the vessel |
Principal Materials | |
Hub Material | Carbon steel/Stainless Steel/Duplex/Super Duplex |
Door Material | Carbon steel/Stainless Steel/Duplex/Super Duplex |
Gasket Seal | NBR/HNBR/VITON |
Hinge/Davit Material | Carbon Steel / Stainless Steel |
Standard Clamp Clip Type Quick Opening End Closures For Filter Tank Packing & Delivery
We use PLYWOOD CASE as packaging,it has the following advantages:
1.Light weight,clear lines,insulation,high strangth,not easy to deformation;
2.No fumigation required.
