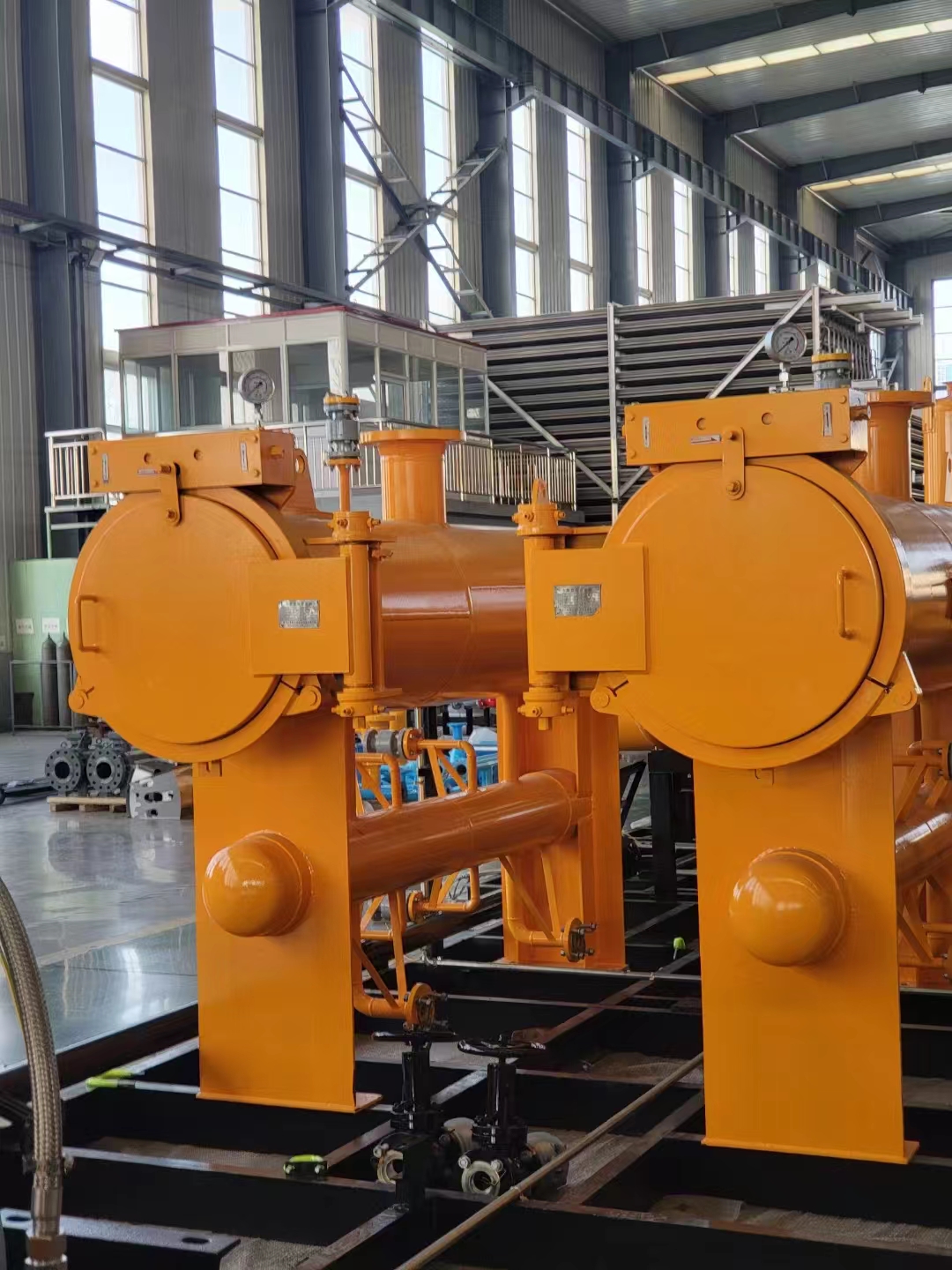

Standard Clamp Clip Type Quick Opening End Closures For Filter Pressure Vessel
Brand Lianerdun
Product origin Mudanjiang
Delivery time 30-60days
Supply capacity 100Pcs/Month
Have the function of secure self-locking (quick opening closure self-locking,shock proof, anti-looseness. secondary relief ). Its not only prevent blind plate loose during the locking but also avoid the dangerous happen when open the blind plate under the pressure.
Download
Standard Clamp Clip Type Quick Opening End Closures For Filter Pressure Vessel
Standard Clamp Clip Type Quick Opening End Closures For Filter Pressure Vessel Product Information
Product Information | |
QOC Nominal Size | From 4″ to 78″ |
QOC Design Code | ASME VIII Div. 1 |
QOC Design Pressure Rating | Up to 100MPa |
QOC Design Temperature (min/max) | -46°C / +350°C |
QOC Orientation | Horizontal/Vertical |
Gasket Seal | O-Ring/Lip seal |
Design Conditions | |
Design Code ASME VIII Div. 1 | Yes |
Code stamped | Yes |
Vassel Wall Thickness | Acc. to the vessel |
Principal Materials | |
Hub Material | Carbon steel/Stainless Steel/Duplex/Super Duplex |
Door Material | Carbon steel/Stainless Steel/Duplex/Super Duplex |
Gasket Seal | NBR/HNBR/VITON |
Hinge/Davit Material | Carbon Steel / Stainless Steel |

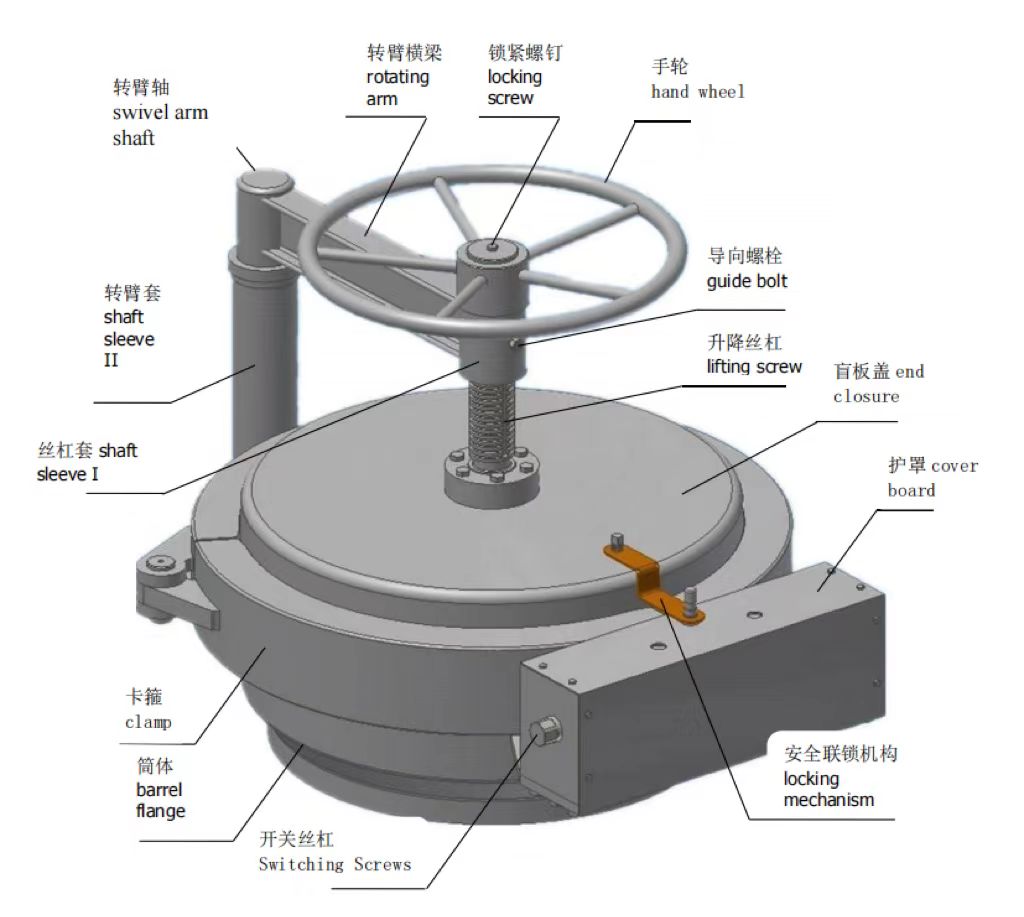

Clamp Clip Type Quick Opening End Closures Opening Operation
1)Before opening the door,the pressure inside the equipment must be ensured to be zero,and safe operating procedures must be strictly followed.
2)unscrew the safety bolts on the Locking mechanism. If there is residual pressure in the equipment, should stop removing the safety bolt immediately and recheck the equipment pressure again. Ensure that the inside pressure relief is complete (the pressure gauge pointer on the equipment returns to zero) before unscrew the safety bolt and locking mechanism.
3)Use special wrench to rotate the switching screw in the direction indicated by the sign, so that the triple yoke slowly rises to the barrel flange can be opened.
4) Rotate the hand wheel, lift the end closure, push the rotating shaft to the proper place , that is complete the opening.
Standard Clamp Clip Type Quick Opening End Closures For Filter Pressure Vessel Packing & Delivery
We use PLYWOOD CASE as packaging,it has the following advantages:
1.Light weight,clear lines,insulation,high strangth,not easy to deformation;
2.No fumigation required.
